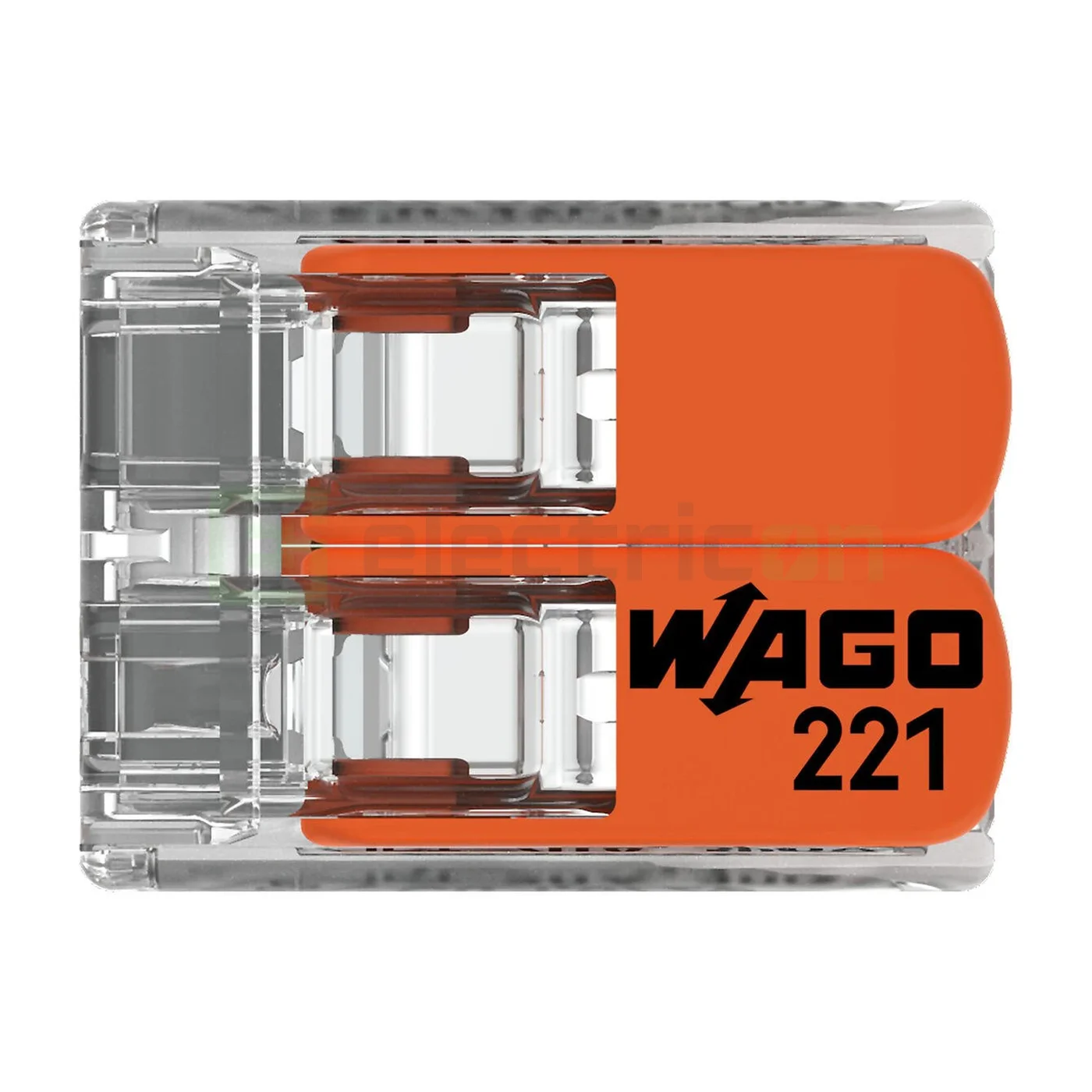

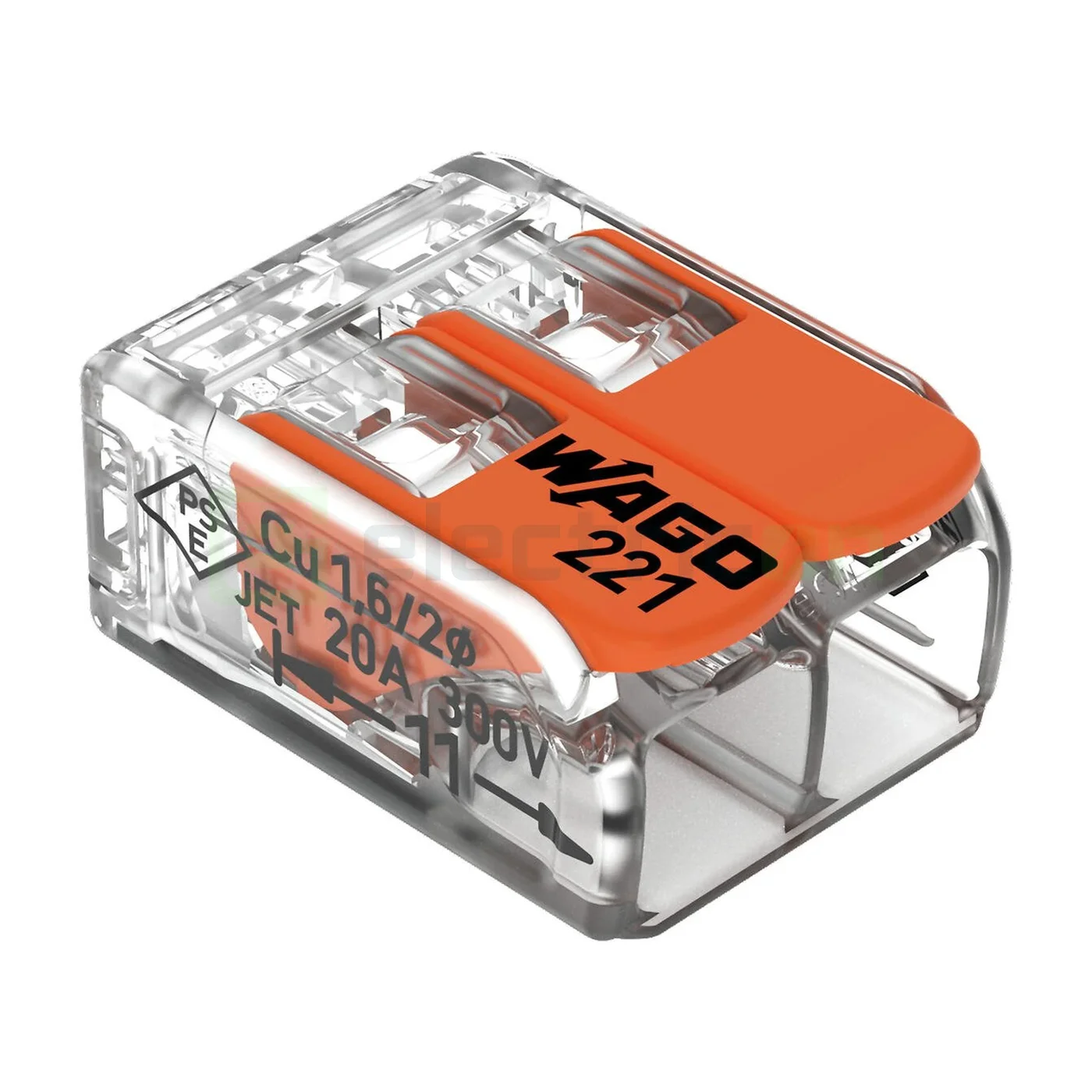

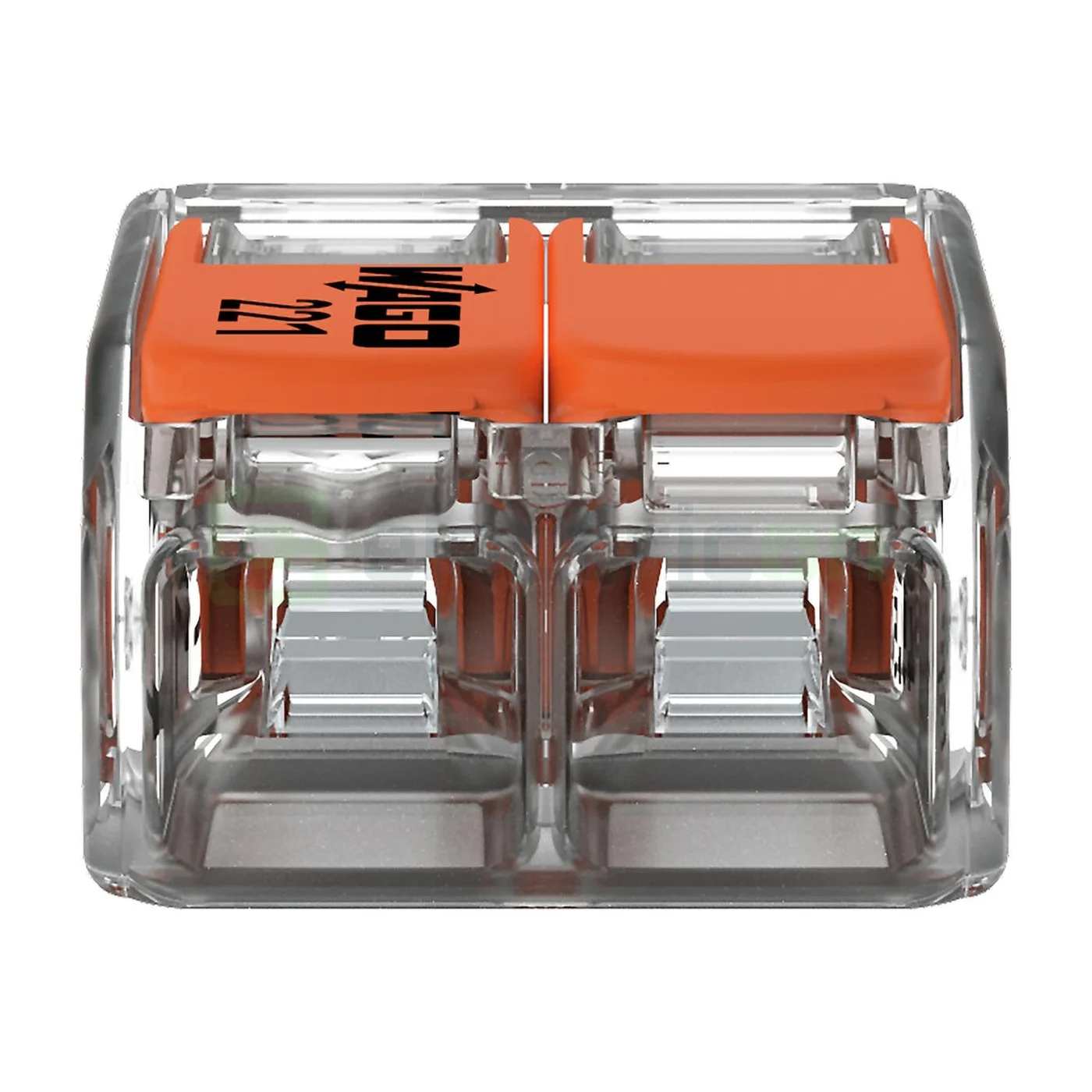

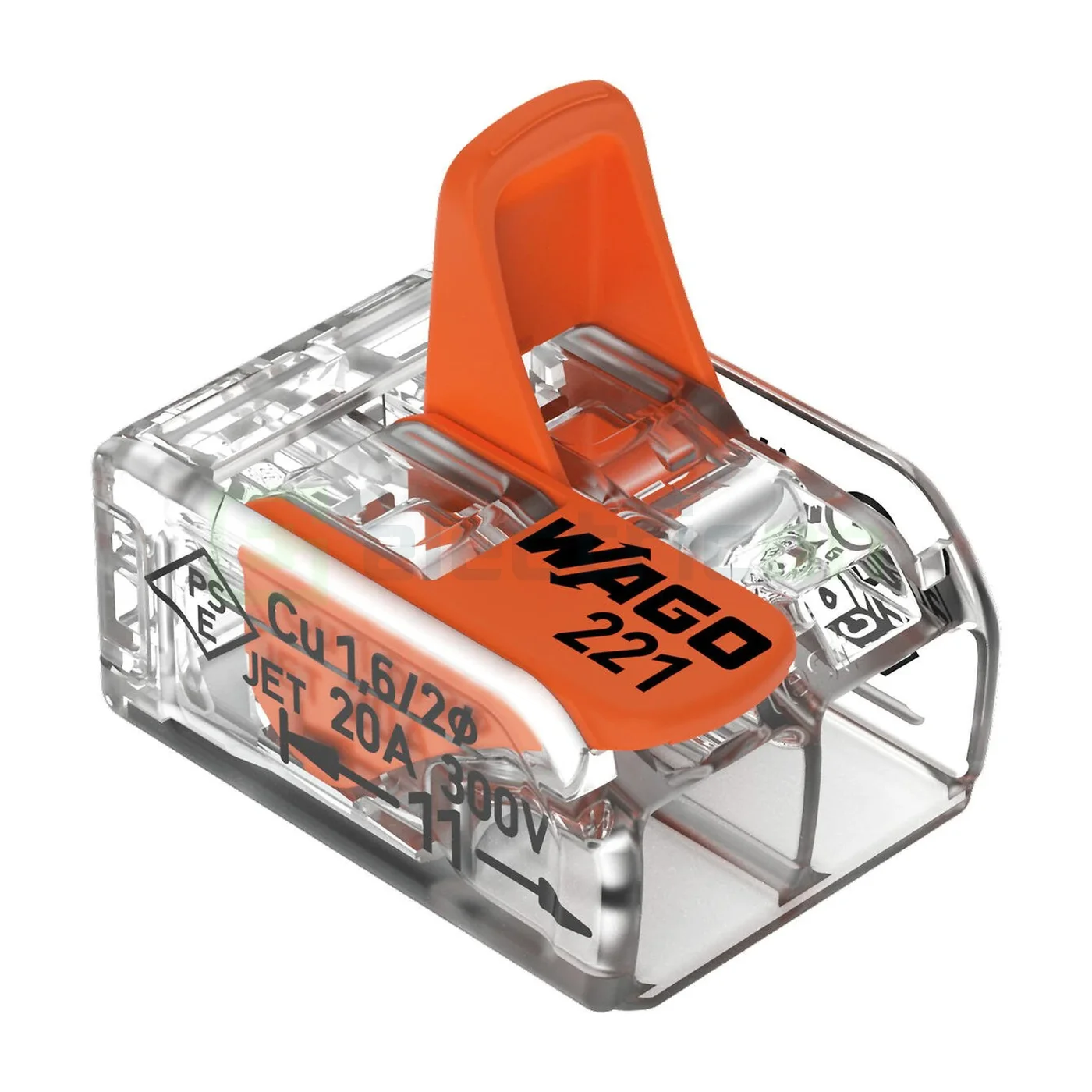

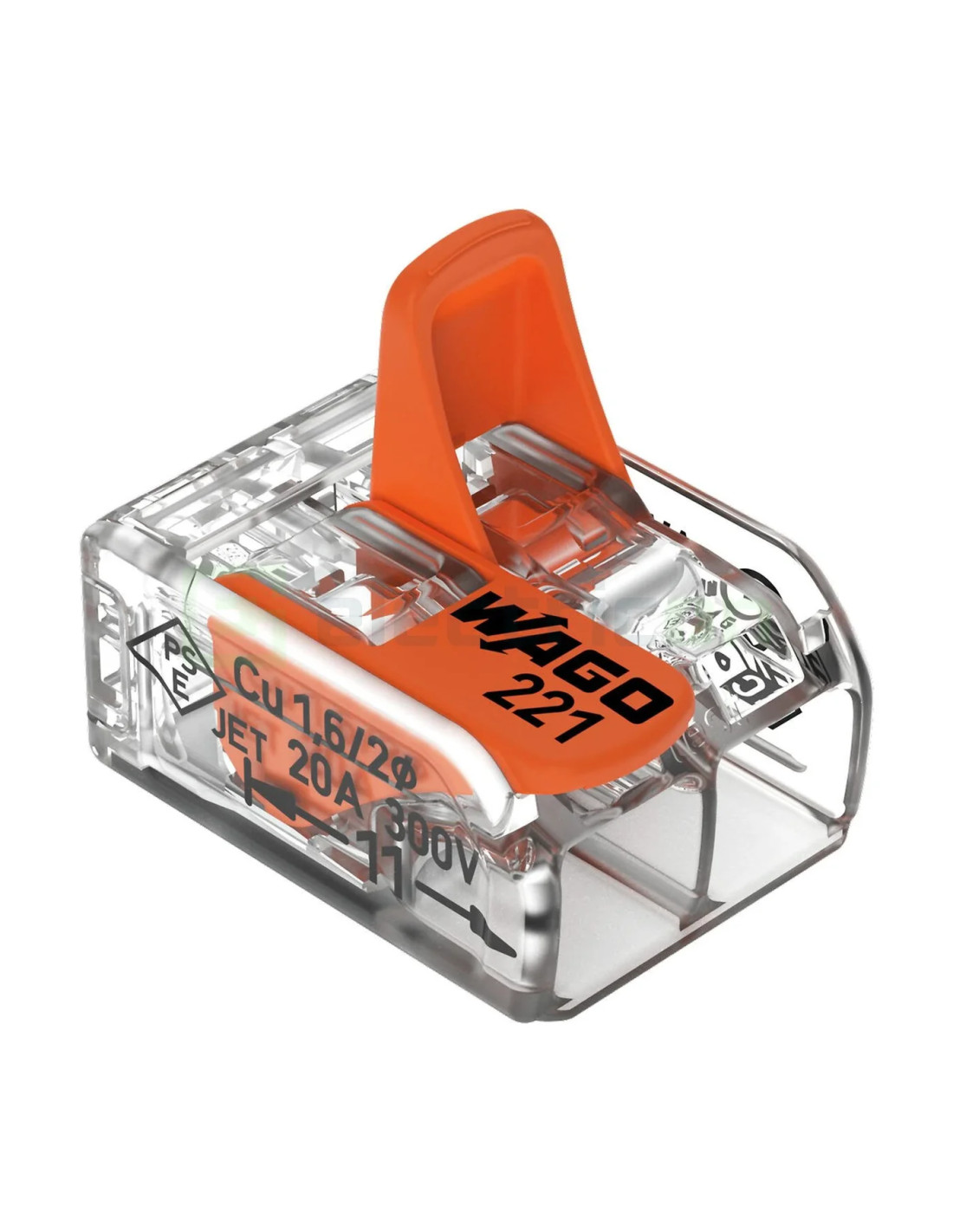

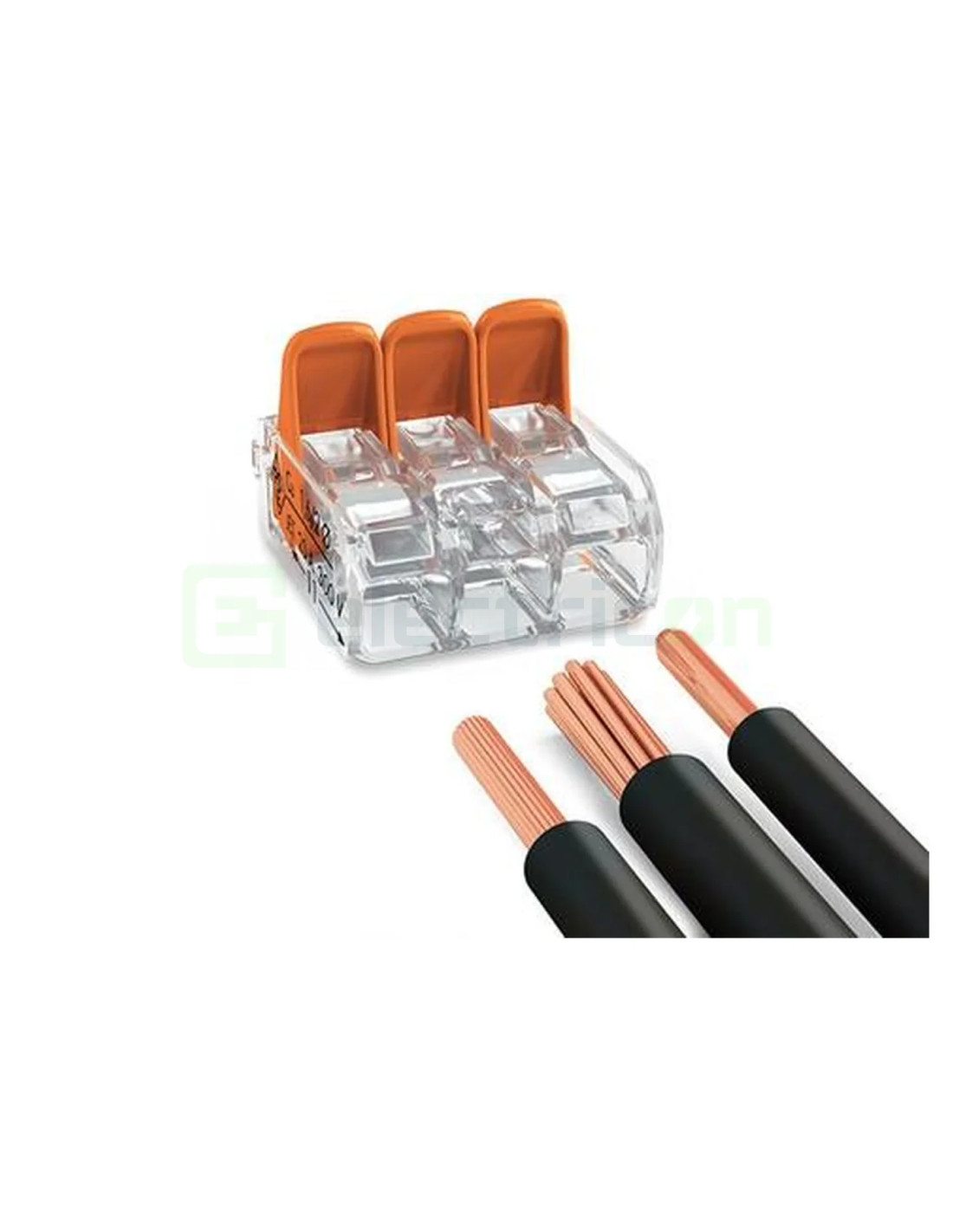

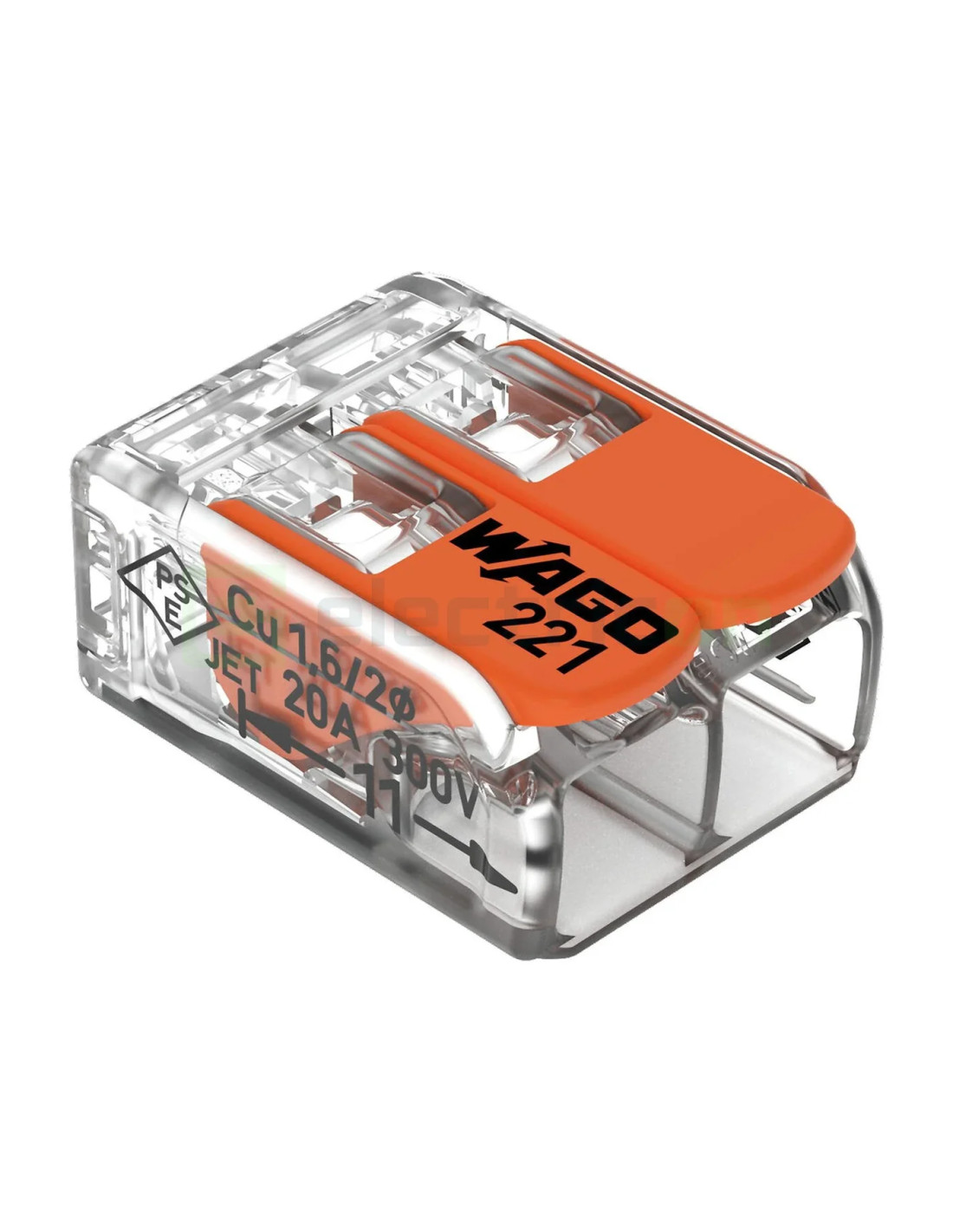

Clema cu clapeta Wago 221-412
![221-412 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/221412-15550-9488.jpg "221-412 [1]")
![221-412 [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/221412-15550-3218.jpg "221-412 [2]")
![221-412 [3]](https://gomagcdn.ro/domains/electricon.ro/files/product/original/221412-15550-8512.jpg "221-412 [3]")
![221-412 [0]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/221412-15550-9488.jpg "221-412 [0]")
![221-412 [1]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/221412-15550-3218.jpg "221-412 [1]")
![221-412 [2]](https://gomagcdn.ro/domains/electricon.ro/files/product/medium/221412-15550-8512.jpg "221-412 [2]")
Economisesti: 0,07 Lei
221-412
Zile de livrare: Luni - Vineri
Data estimata de livrare: poimaine, 29.12.2024
Cod Produs:
221-412
Ai nevoie de ajutor?
0773393640
/
0772245110
Pachete si Promotii
-
300 x CLEMA CU CLAPETA WAGO 221-412
1,36 Lei1,29
Pachet cleme Wago seria 221 (412, 413, 415, 2411)
-
300 x CLEMA CU CLAPETA WAGO 221-415
2,72 Lei2,58 -
360 x CLEMA WAGO CLAPETA IN LINIE 221-2411
1,99 Lei1,89 -
300 x CLEMA CU CLAPETA WAGO 221-413
1,68 Lei1,60 -
300 x CLEMA CU CLAPETA WAGO 221-412
1,36 Lei1,29
- Descriere
- Video (1)
- Review-uri (0)
Link Producator
https://www.wago.com/ro/installation-terminal-blocks-and-connectors/compact-splicing-connector/p/221-412
Electrical data
Ratings per IEC/EN 60664-1
Ratings per UL 1059
Connection data
Mai mult
Physical data
Material data
Environmental requirements
Commercial data
https://www.wago.com/ro/installation-terminal-blocks-and-connectors/compact-splicing-connector/p/221-412

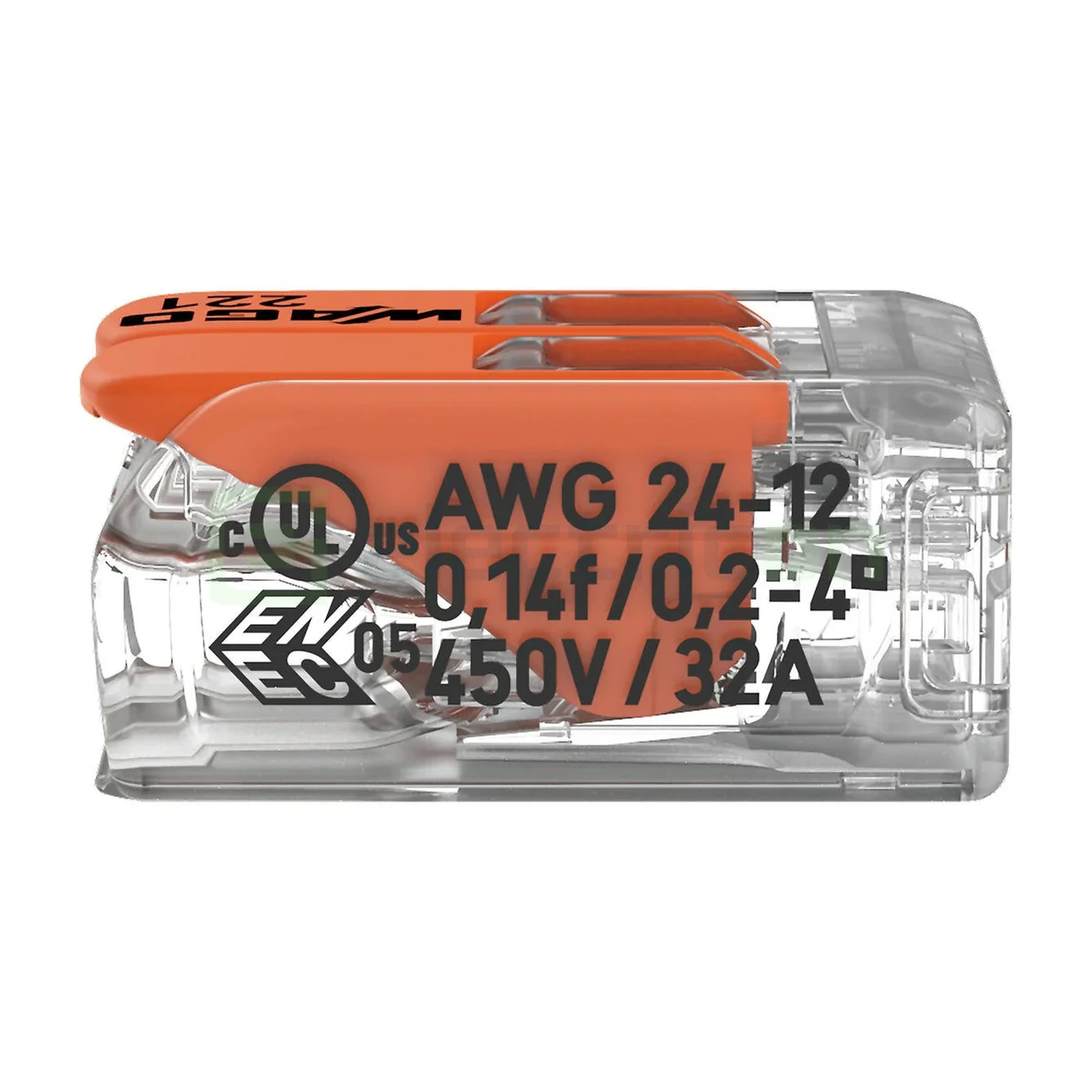

Electrical data
Ratings per IEC/EN 60664-1
| Ratings per | EN 60664 |
| Nominal voltage (II/2) | 450 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated current | 32 A |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |

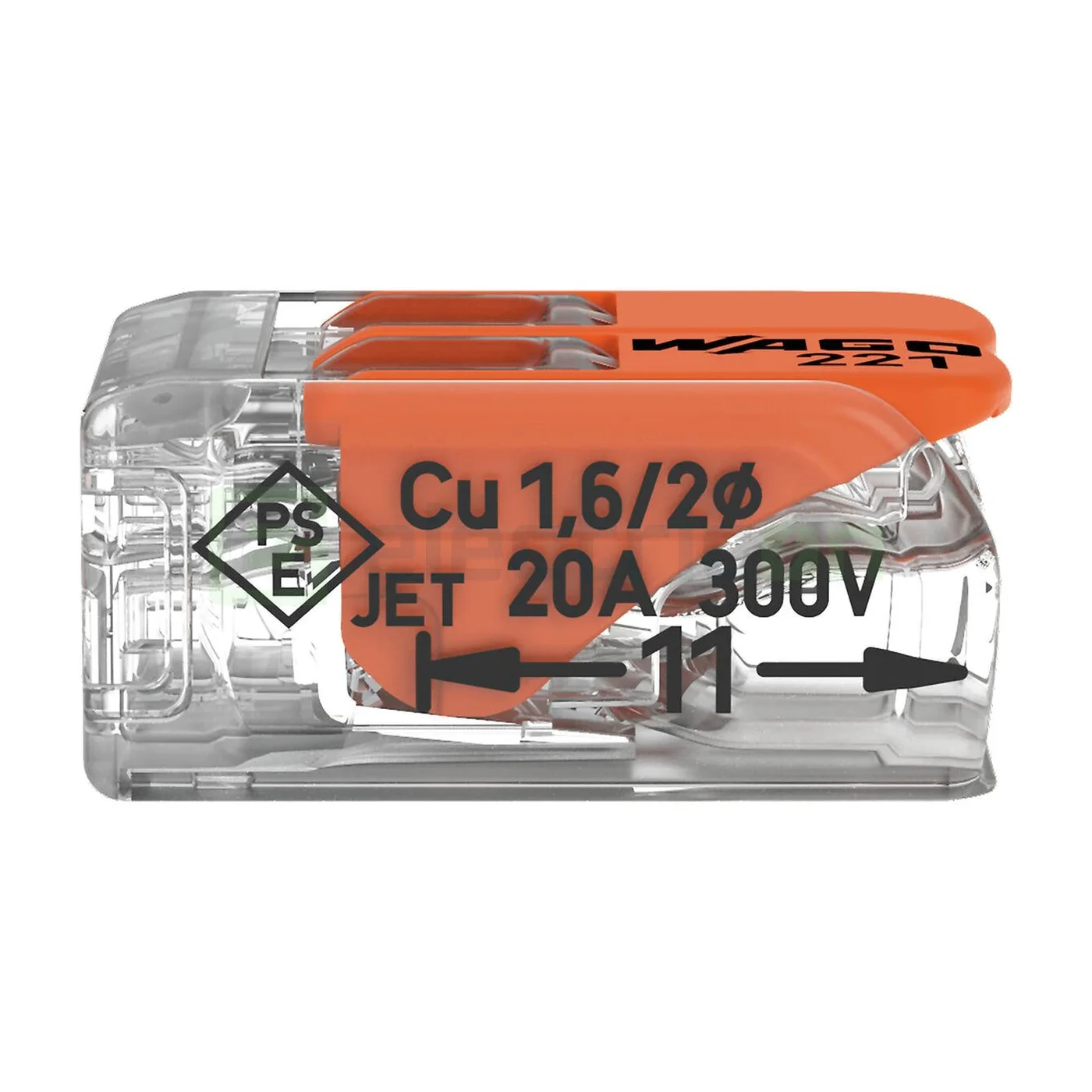

Ratings per UL 1059
| Approvals per | UL 486C |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 20 A |
Connection data
| Connection technology | CAGE CLAMP® |

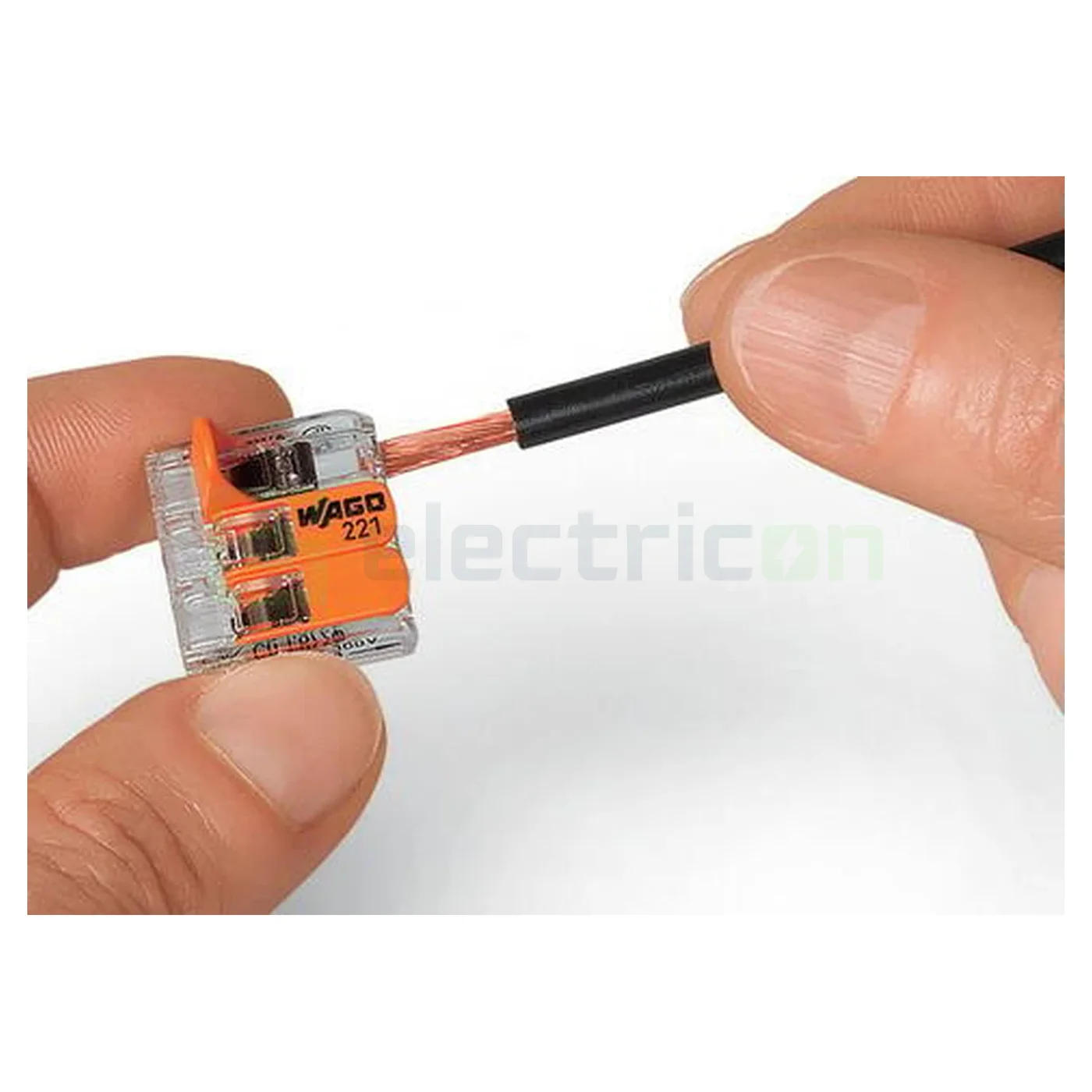

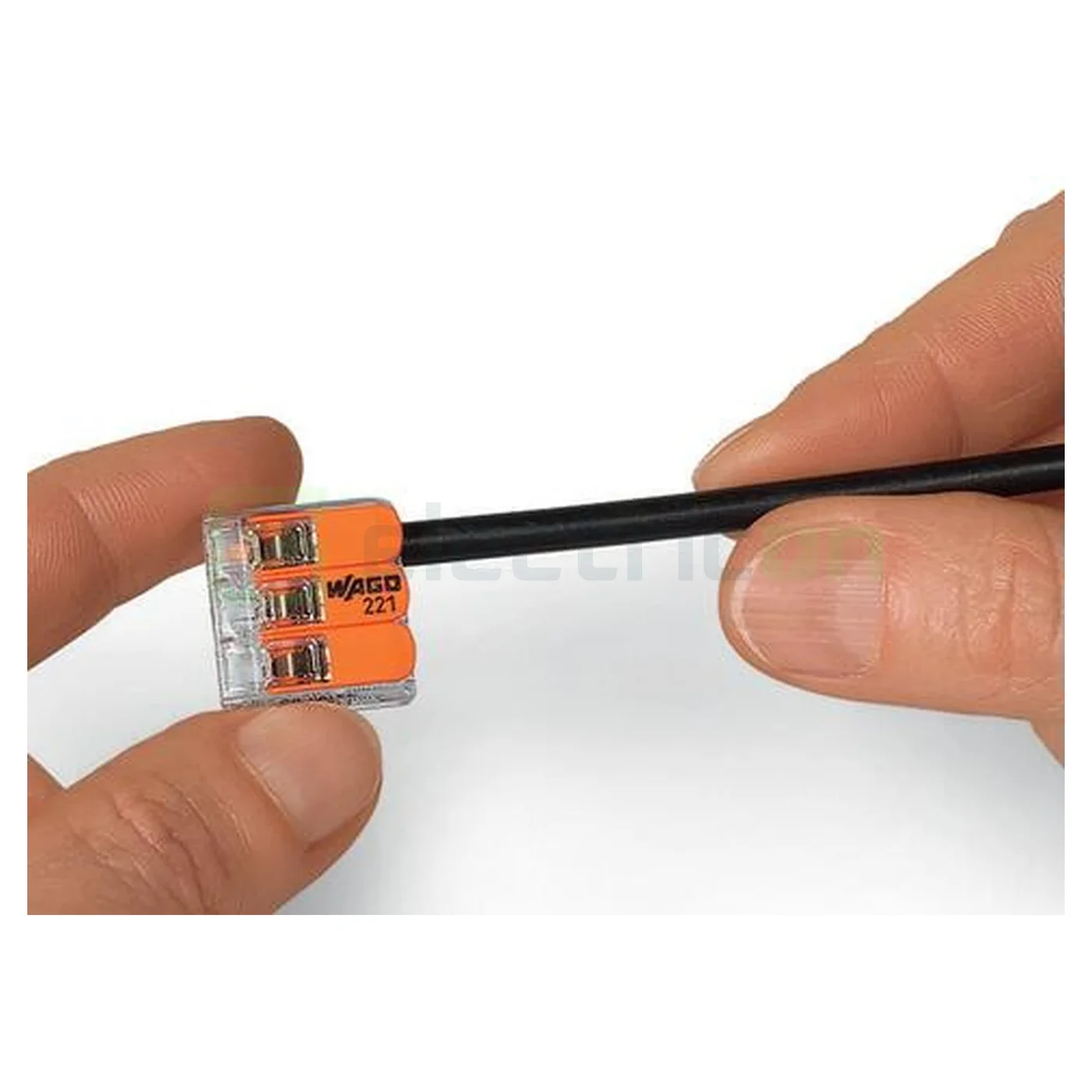

| Actuation type | Lever |

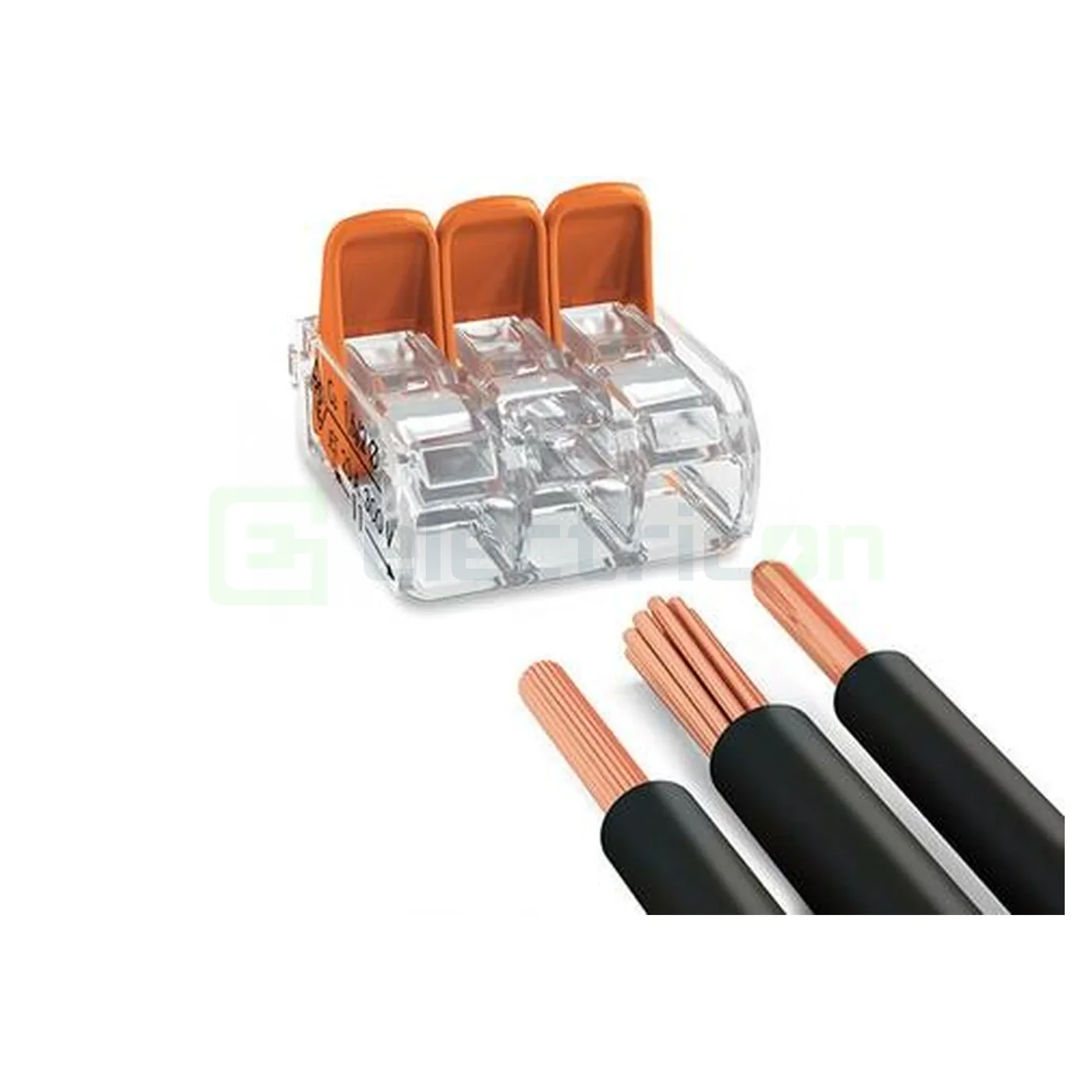

| Connectable conductor materials | Copper |
| Nominal cross-section | 4 mm² |
| Solid conductor | 0,2 … 4 mm² / 24 … 12 AWG |
| Stranded conductor | 0,2 … 4 mm² / 24 … 12 AWG |
| Fine-stranded conductor | 0,14 … 4 mm² / 24 … 12 AWG |

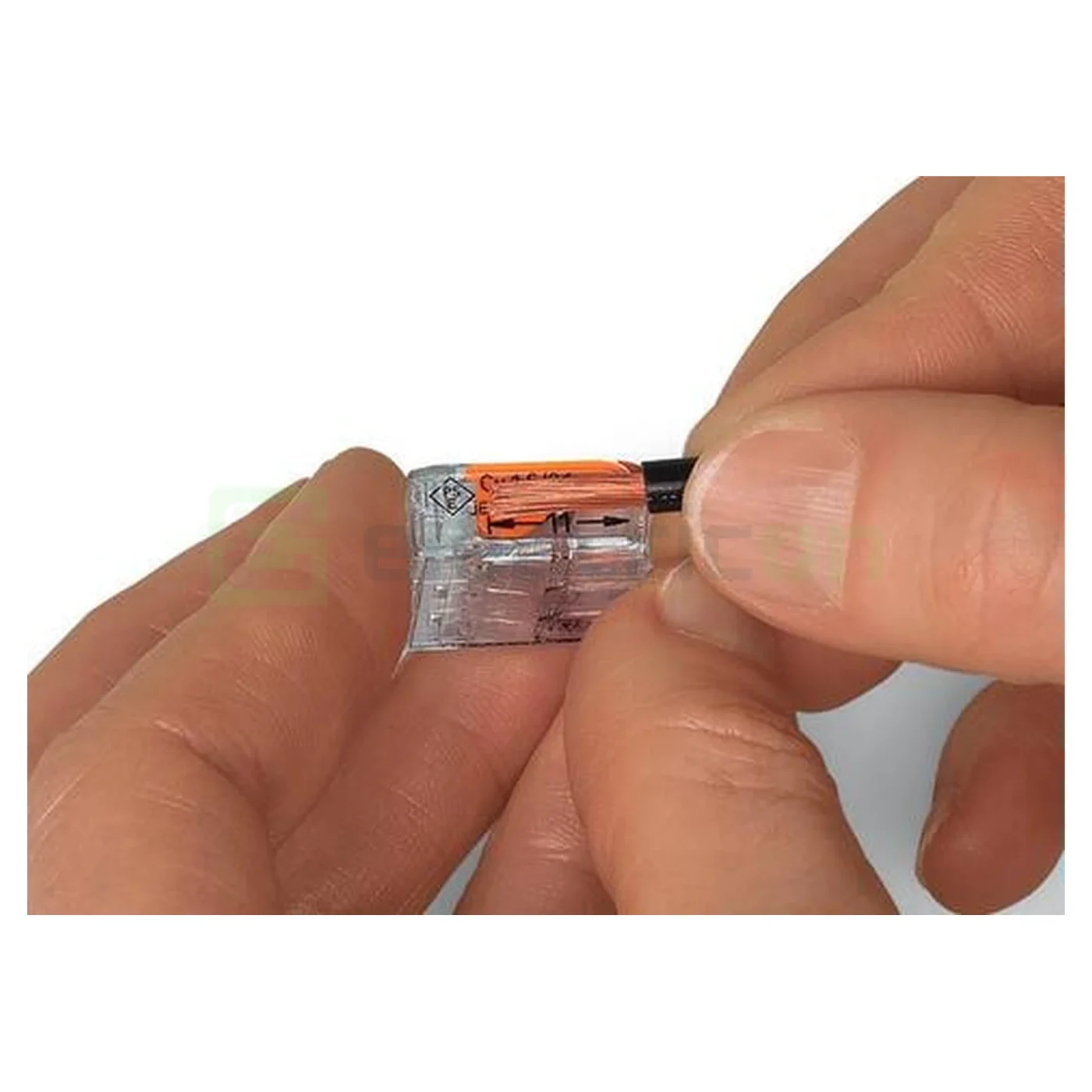

| Strip length | 11 mm / 0.43 inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Wiring type | Side-entry wiring |
Mai mult

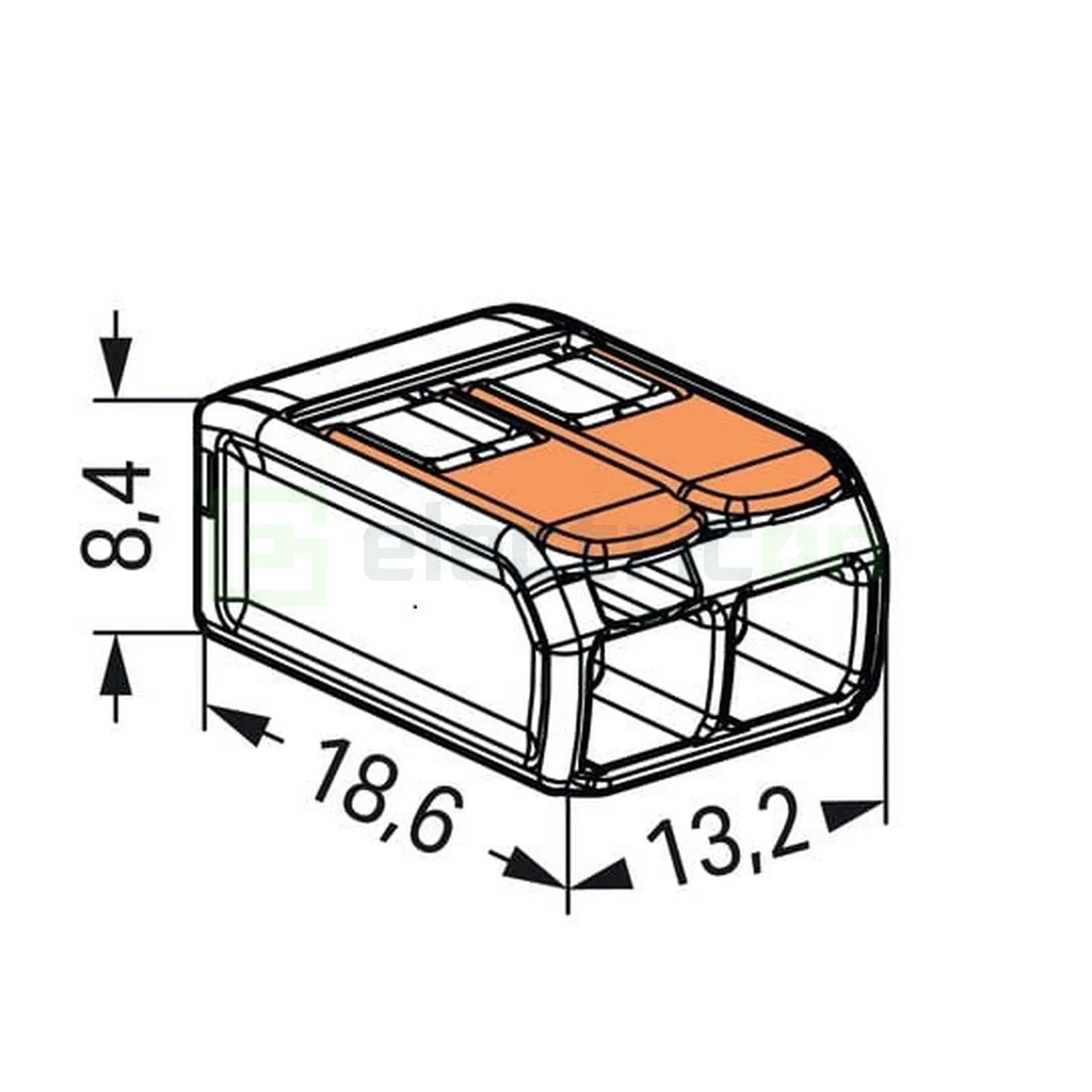

Physical data
| Width | 13,1 mm / 0.516 inch |
| Height | 8,3 mm / 0.327 inch |
| Depth | 18,6 mm / 0.732 inch |
Material data
| Color | transparent |
| Flammability class per UL94 | V2 |
| Color of actuator | orange |
| Weight | 1,7 g |
Environmental requirements
| Surrounding air temperature (operation) | 85 °C |
| Continuous operating temperature | 105 °C |
| Temperature marking per EN 60998 | T85 |
Commercial data
| Product Group | 7 (Push Wire Conn.) |
| Packaging type | BOX |
| Country of origin | DE |
| GTIN | 4050821808435 |
| Customs tariff number | 85369010000 |
